BAUR IRG 400 Portable

The IRG 400 is an efficient time domain reflectometer for cable fault pre-location that provides fast and precise measurement results.

The choice is yours, as the IRG 400 is available as a portable device in a transport case or as a 19″ plug-in unit in the Syscompact 400 and Syscompact 400 portable. This provides maximum flexibility and is the solution for a wide range of applications.

It can be operated using a tablet or laptop. Operation is extremely efficient when used in combination with the tried-and-tested BAUR Software 4 (laptop) or the new touch-based BAUR BUI-F application (tablet). The new generation of the IRG can be connected to a tablet and laptop via Wi-Fi – thus enabling you to perform galvanically isolated measurements outside of the HV area.

Download Datasheet

Category: Tag:

Description

The IRG 400 is a time domain reflectometer for cable fault pre-location. With three measurement inputs, the IRG 400 enables 3-phase measurement on de-energised lines. It also has an integrated CAT IV/600 V filter and can therefore be used on live cables up to 400 V – with appropriately certified test leads. When combined with a surge voltage generator, it is also possible to pre-locate high-resistive cable faults.

The SIM/MIM method in particular triggers faults with a single HV pulse, not only delivering precise results fast, but also in a cable-friendly manner.

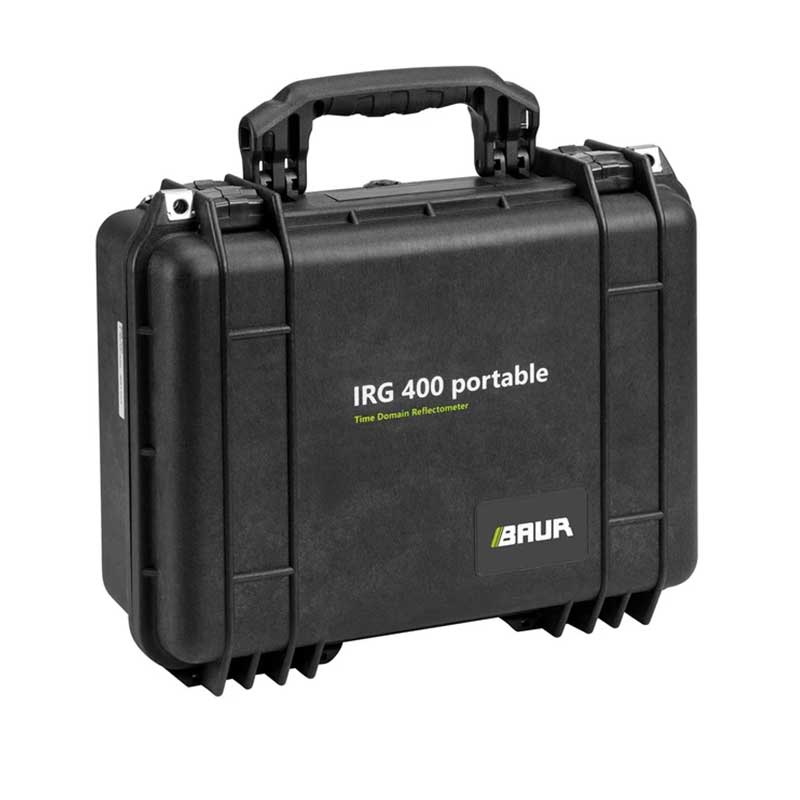

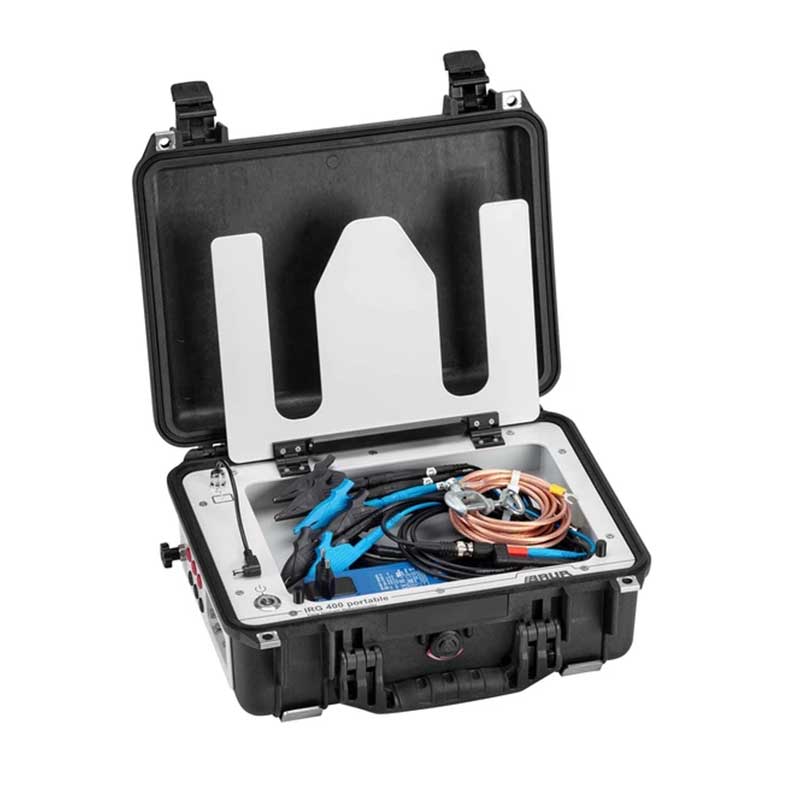

The IRG 400 portable – the transport case version of the impulse measurement device – is operated via a field-compatible 10″ tablet on which the new BAUR BUI-F application is installed. As a 19″ plug-in unit in the Syscompact, the IRG 400 can be operated either via the tablet or a 15″ laptop that is equipped with the BAUR Software 4.

In both instances, the operating control is connected to the measuring device via a radio connection. This means that you can leave the HV area once the IRG is connected and carry out the measurements in a safe, convenient place. Your work is not only safer, but also more convenient and ergonomic.

While the BAUR Software 4 with its multitude of application options and functions is the trump card, the BAUR BUI-F application is a slimline version that you can use to pre-locate cable faults within no time. If you want to compile reports and use the laptop as a working tool in the office, the BAUR Software 4 is the right choice for you!
